Description
- warranty : 3 years
- customized support : OEM, ODM
- place of origin : Beijing, China
- brand name : OPTO-EDU
- model number : A33.1502
- Eyepiece : WF10x
- Nosepiece : 4 Holes
- Objective : Achromatic 4x,10x,40x,100x
- Working Stage : Double Layer Mechnical
- Condenser : Abbe N.A.1.25
- Focusing : Coaxial Coarse & Fine
- Light Source : LED
- Power Supply : 100~240V
- LCD Screen : 10.5″
- Resolution : 8.0M
- Theory : Video Microscope
- Drawtube : Trinocular
* 10.5″ Touch Screen Android Pad + 4K Digital Camera, All-in-One
* 8.0M 1/1.8″ CMOS Digital Camera Resolution 3840*2158@30FPS
* Android 11 Tablet Built-in Memory RAM 2G + ROM 16G For Photo & Video Record
* USB3.0+HD+LAN Output, Touch Screen + USB Mouse & Keyboard Control
* Open & See Microscope Image Directly, Built-in Software For Measure & Analysis
* 8.0M 1/1.8″ CMOS Digital Camera Resolution 3840*2158@30FPS
* Android 11 Tablet Built-in Memory RAM 2G + ROM 16G For Photo & Video Record
* USB3.0+HD+LAN Output, Touch Screen + USB Mouse & Keyboard Control
* Open & See Microscope Image Directly, Built-in Software For Measure & Analysis
|

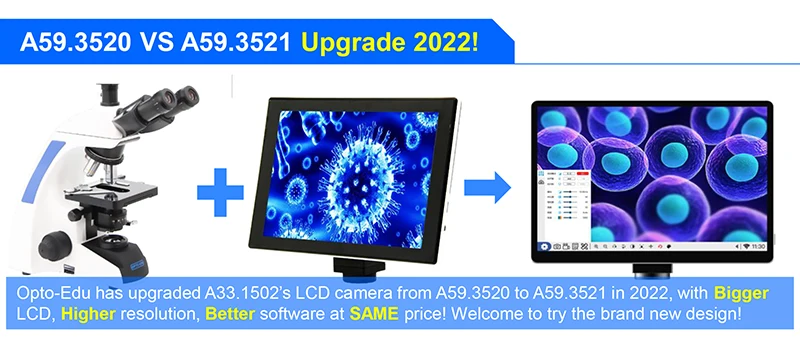

A59.3520
|
A59.3521 Upgrade 2022!
|
|
|
LCD
|
9.7″ HD IPS Touch Screen With Backlight
|
10.5″ HD IPS Touch Screen With Backlight
|
|
Camera
|
5.0M Digital Camera
|
8.0M 4K Digital Camera
|
|
Sensor
|
1/2.5″ CMOS
|
1/1.8″ CMOS
|
|
Resolution
|
2048×1536 @15FPS
|
3840*2158 @30FPS
|
|
Pixel
|
2.2umx2.2um
|
2.0umx2.0um
|
|
Memory
|
2GB DDR3 / 8GB EMMC
|
2GB LPDDR4 / 16GB EMMC
|
|
Digital Zoom
|
–
|
16x
|
|

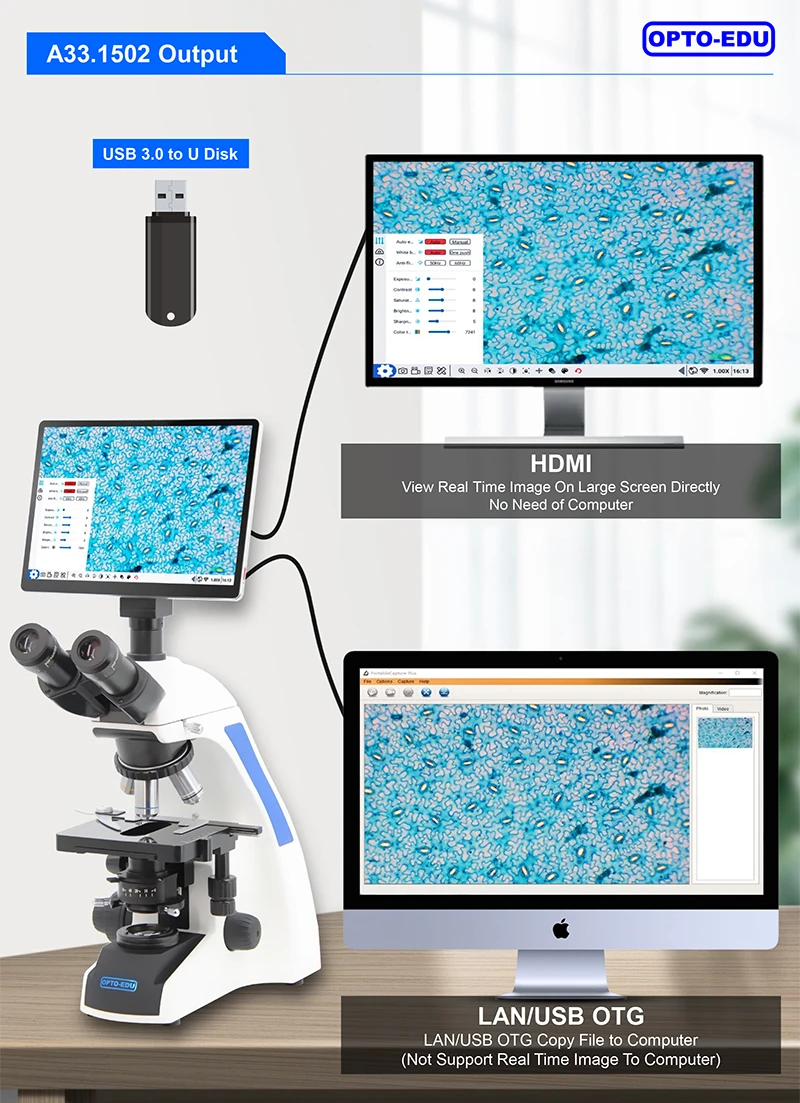

Data Output
|
USB2.0*1, For USB Mouse + Keyboard Control
|
USB2.0*1, For USB Mouse + Keyboard Control
|
|
USB2.0*1, For USB Disk
|
USB3.0*2, For USB Disk, Support Max 128G
|
|
|
Mini HD*1 Sync Output to Monitor
|
HD*1 Sync Output to Monitor
|
|
|
–
|
LAN*1
|
|
|
TF Card, Support Max 32G
|
–
|
|
|
Headphone 3.5mm
|
–
|
|
|
Image Format
|
.jpg
|
.jpg
|
|
Video Format
|
1080p
|
1080p
|
|
System
|
Android 5.1 System
|
Android 11 System
|
|
90 Languages
|
90 Languages
|
|
|
Exposure Control Auto/Manual
|
Exposure Control Auto/Manual
|
|
|
White Balance Auto/Manual
|
White Balance Auto/Manual
|
|
|
Support WIFI
|
Support WIFI
|
|
|
Support Bluetooth
|
Support Bluetooth
|
|
|
Software
Function |
S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function
|
S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function
Direct Enter Microscope View |
|
Size
|

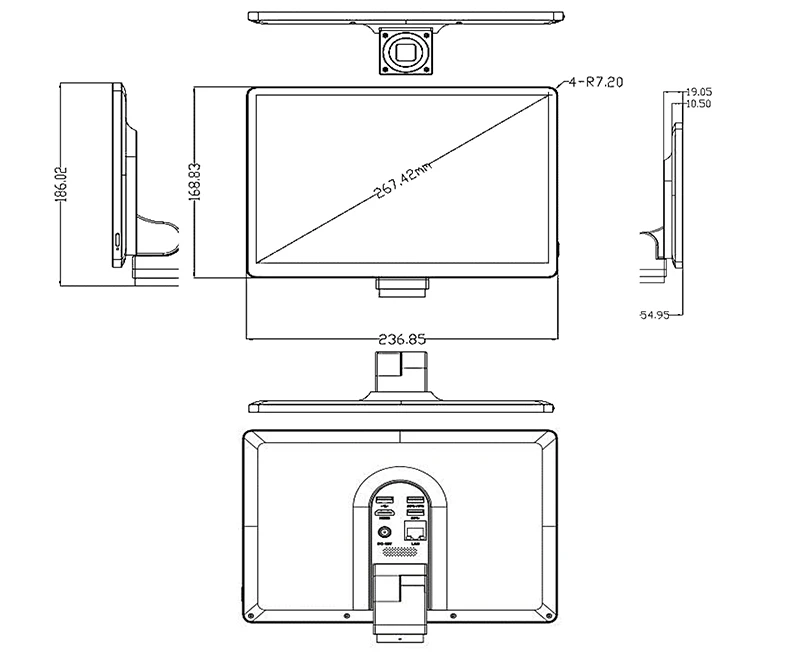

Pad 238x182x12mm, Camera 40x39mm
|
Pad 237x169x10.5mm, Camera 40x39mm
|
|
Power
|
DC 12V/2A Power Adaptor, AC 100~240V
|
|
|
Package
|
Packing Box 10x24x29cm, 0.6Kg, 1 set/Box, lncluding: LCD Camera, AC Adapter
|
|

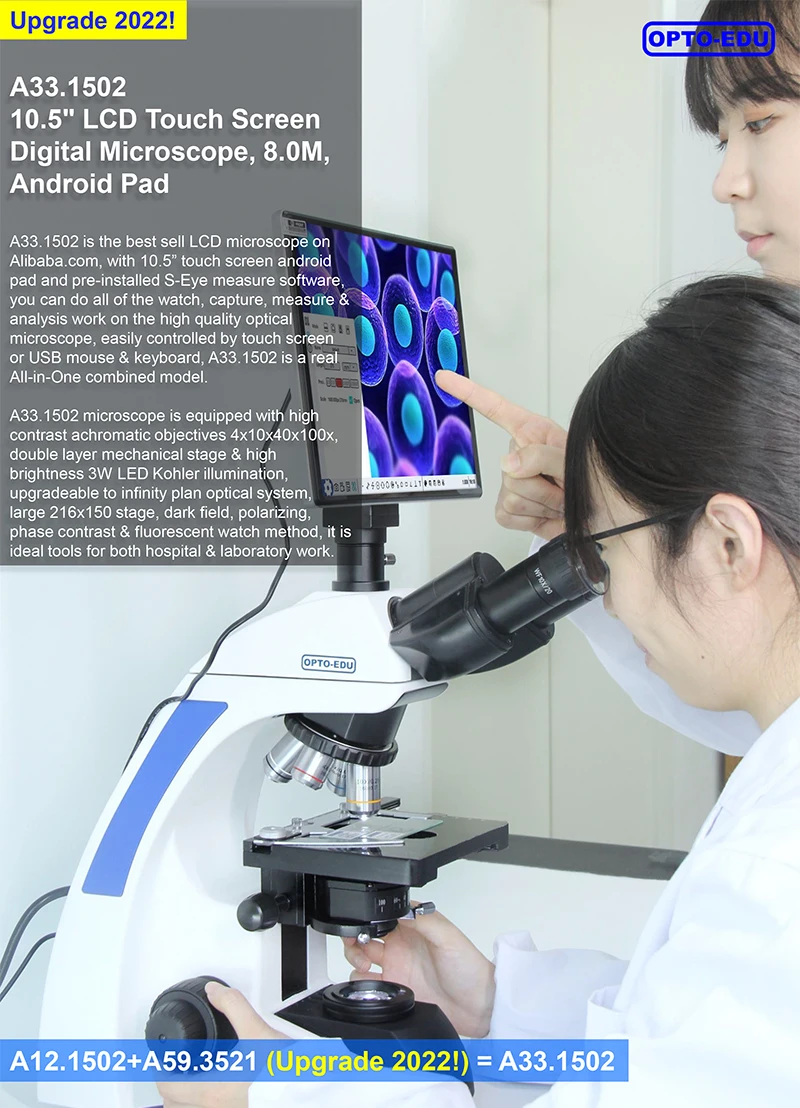

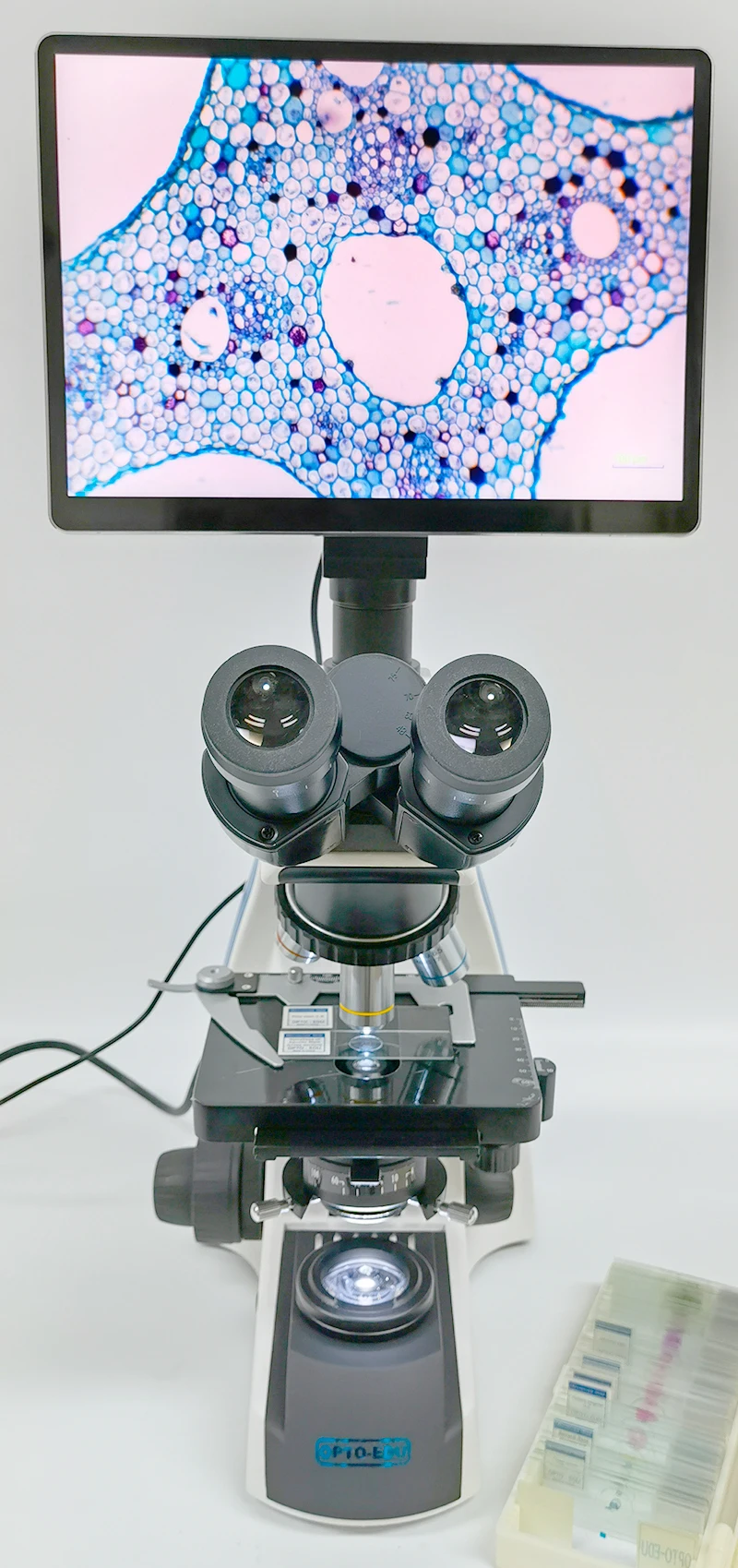

A33.1502 9.7″ LCD Digital Biological Microscope
|
|
|

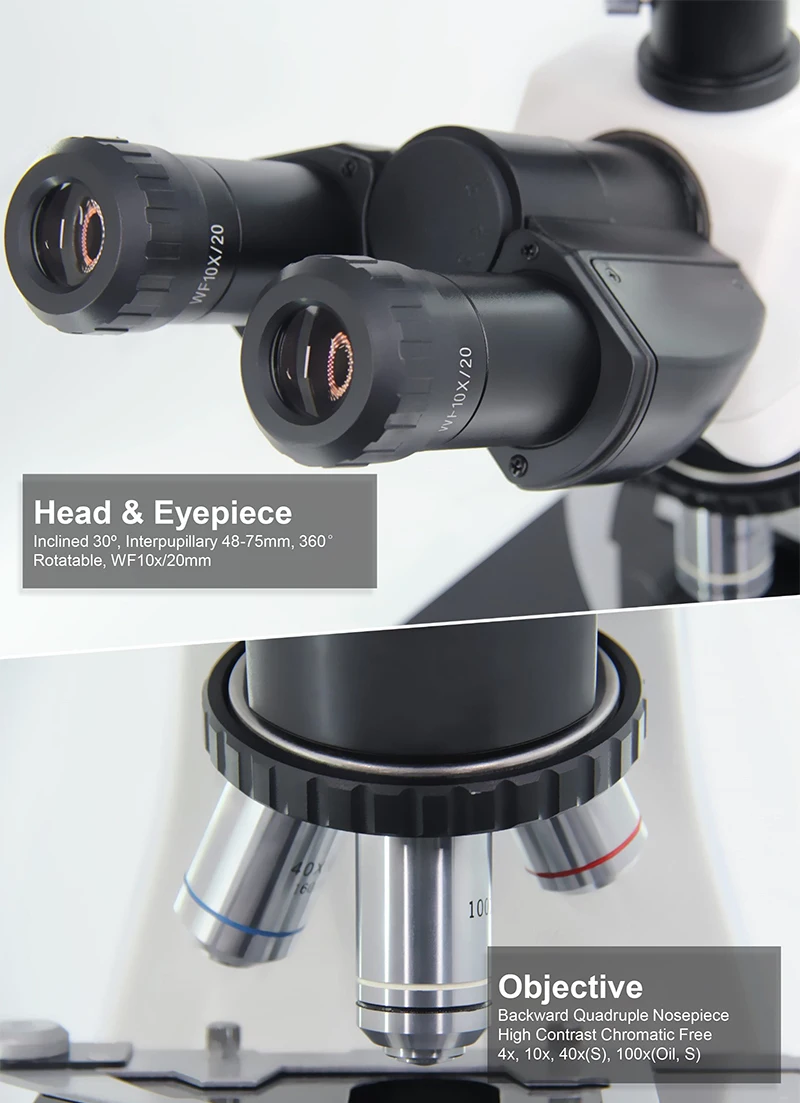

Head
|
Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
|
|
Eyepiece
|
WF10x/20mm, Diopter Adjustable, Dia. 30mm
|
|
Objective
|
High Contrast Chromatic Free
4x, 10x, 40xS, 100xOil, S |
|
Focus Knob
|
Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
|
|
Nosepiece
|
Quadruple, Backward With Click Stops
|
|
Stage
|
Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
|
|
Condenser
|
Abbe Condenser N.A.1.25, Center Adjustable
|
|

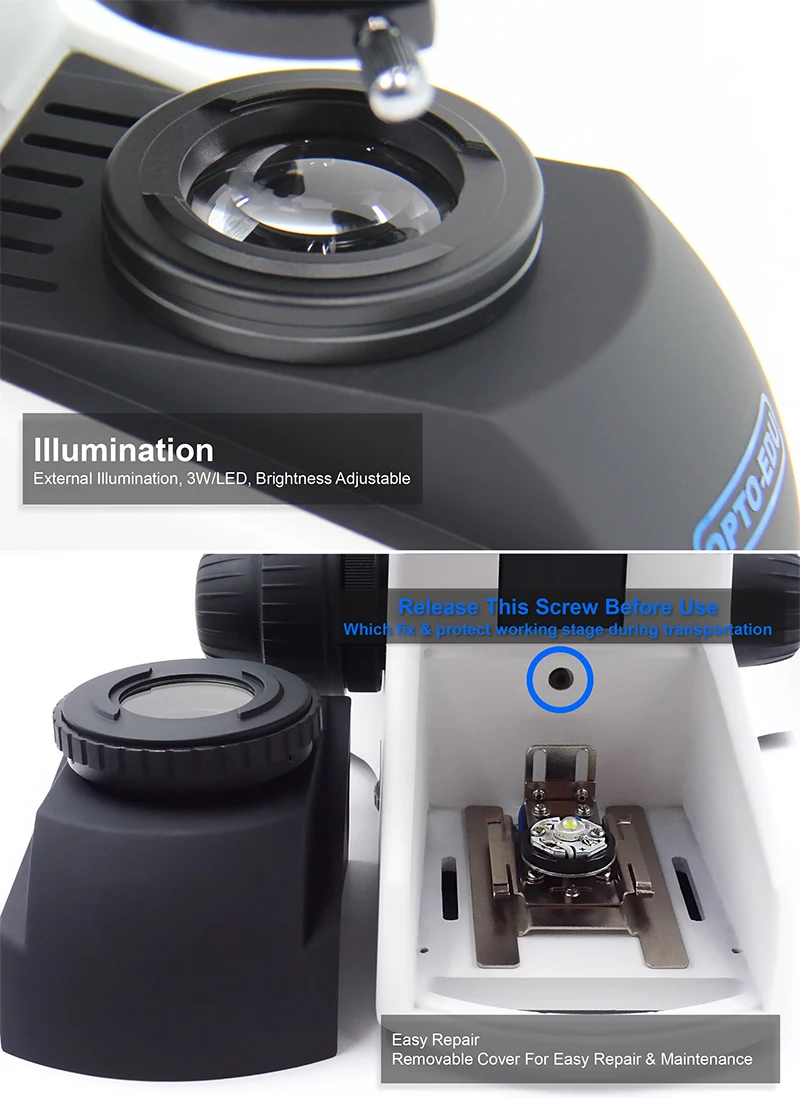

Light Source
|
3W LED Brightness Adjustable
|
|
Adapter
|
C-Mount 0.5x
|
|
Package
|
53*32.5*53.5cm/11.5Kg, 1 Set/Carton
|
|

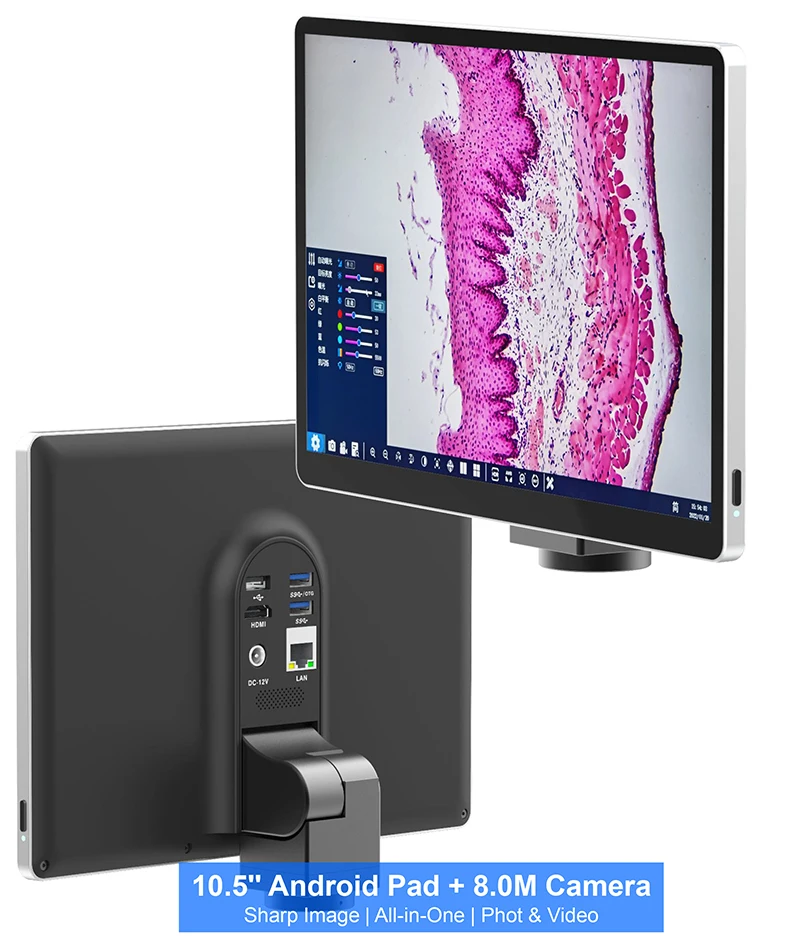

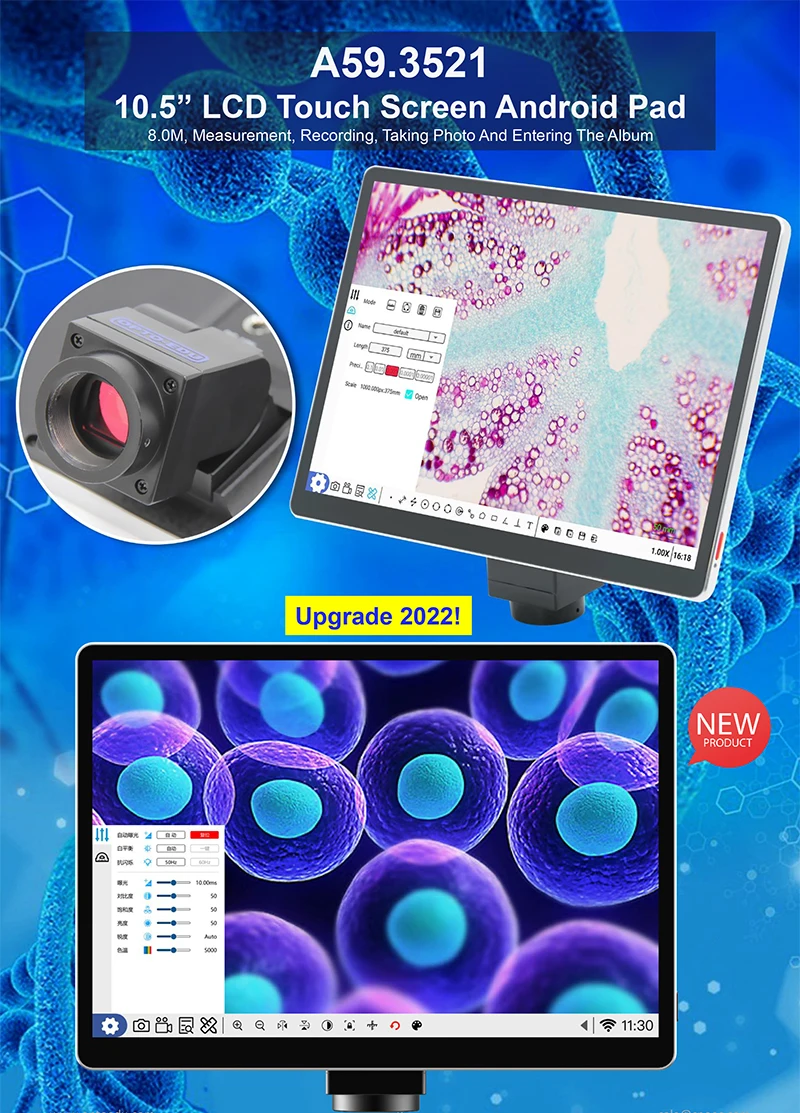

10.5“ Touch Screen Android Pad Digital Camera, 8.0M A59.3521 Newly Update 2022!
|
||
|
Spec.
|
Model
|
A59.3521 All-in-One Android Tablet Digital Camera
|
|
Sensor
|
1/1.8” CMOS Sensor
|
|
|
Resolution
|
8M, 4K, 3840*2158@30FPS
|
|
|
Pixel size
|
2.0um*2.0um
|
|
|
Screen
|
10.5” High-Definition Touch Screen
|
|
|
Memory
|
Built-in RAM 2G, ROM 16G
|
|
|
System
|
Android 11 Tablet, Pre-Installed Measure Software S-Eye
|
|
|
WIFI
|
2.4GHz/5GHz Dual-band WIFI, Support WIFI6
|
|
|
Bluetooth
|
Bluetooth 5.0
|
|
|

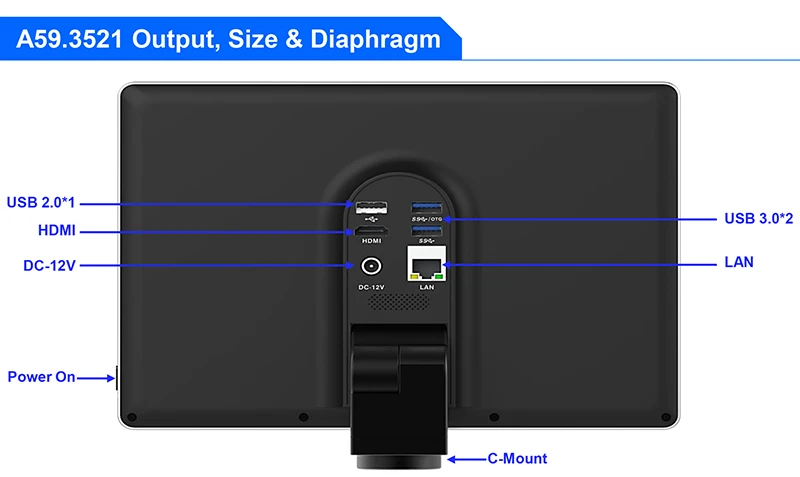

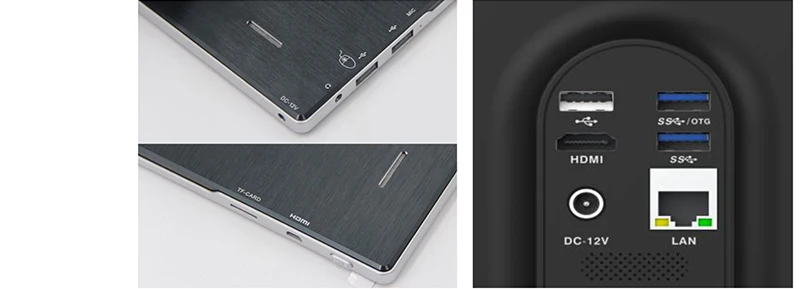

Output
|
HD to Monitor
|
|
|
USB3.0*2, to U Disk, or OTG to Computer For File Copy
|
||
|
Gigabit LAN Port to Computer
|
||
|
USB2.0*1, to Mouse & Keyboard
|
||
|
Power
|
Output DC 12V/2A, Input 110~220V Wide Range
|
|
|

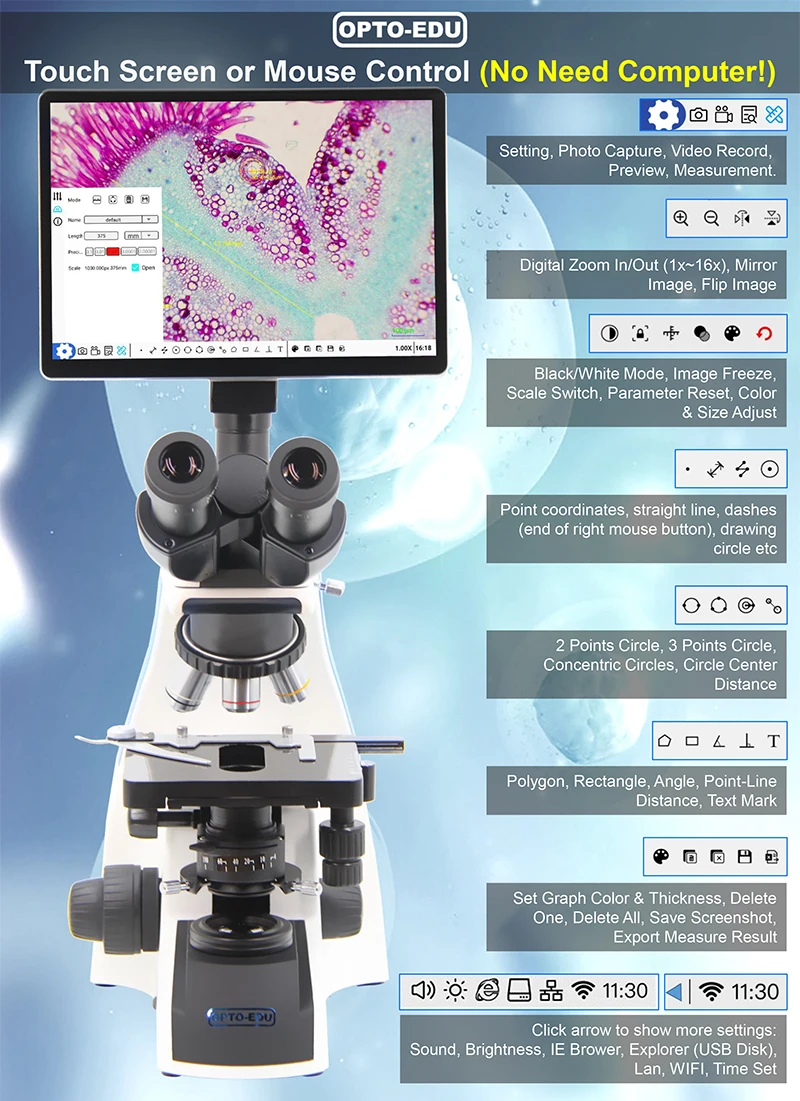

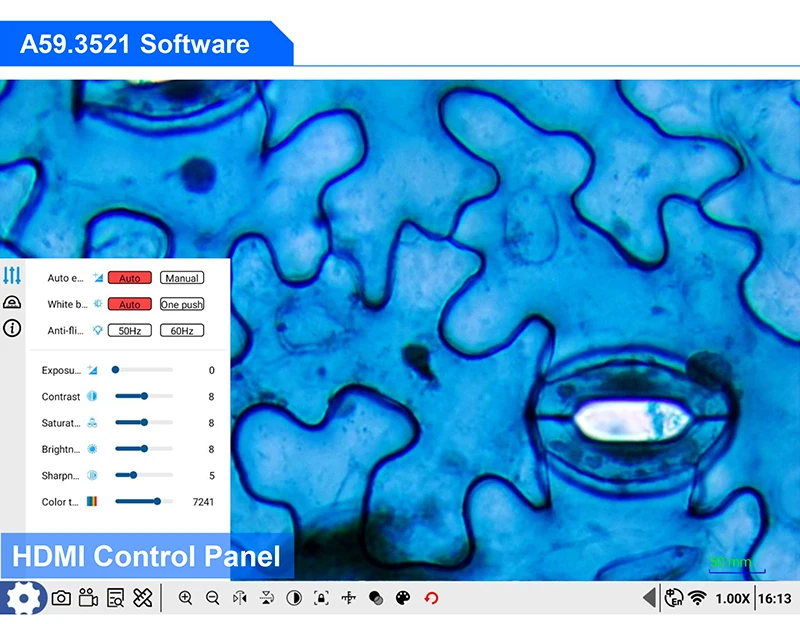

Function
|

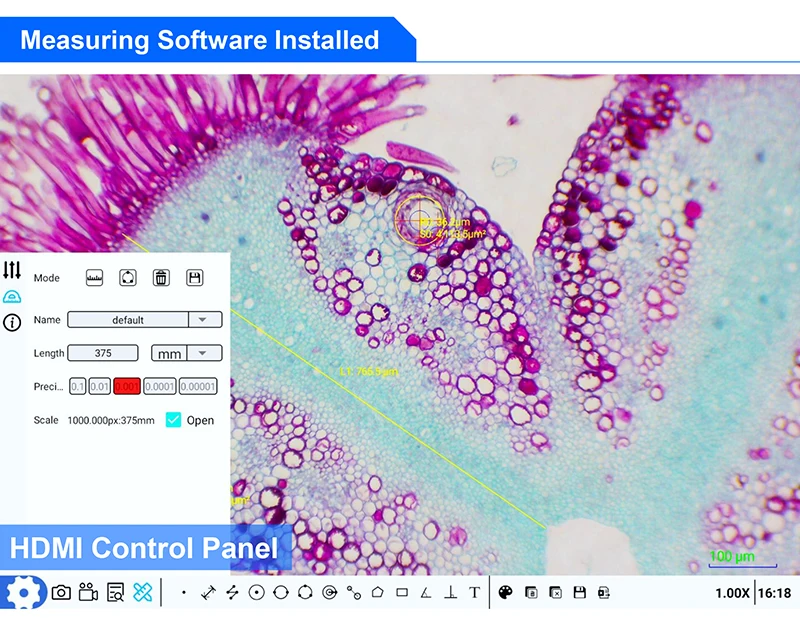

Measure Software
|
S-Eye 2.0 Measure Software, For All Kinds Measure Function
|
|
Image Adjustment
|
Brightness, Contrast, Saturation, Color Temperature
|
|
|
Camera Function
|
Mirror, Flip, Freeze, Black and White
|
|
|
Control
|
USB Mouse & Keyboard, Or Touch Screen Operation
|
|
|
|
8.0M Image Capture
|
|
|
Video
|
1080P Video
|
|
|
Storage
|
Photo And Video Store to Built-in 16G Memory, or to USB Disk
|
|
|
Marking
|
Point Coordinates, Crosshairs, Coordinate System, Text Annotations
|
|
|
Length Measure
|
Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance
|
|
|
Geometric Measure
|
Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle
|
|
|
Area Measure
|
Polygon, Rectangle
|
|
|
Languages
|
Android System Support 90 Languages
|
|
|

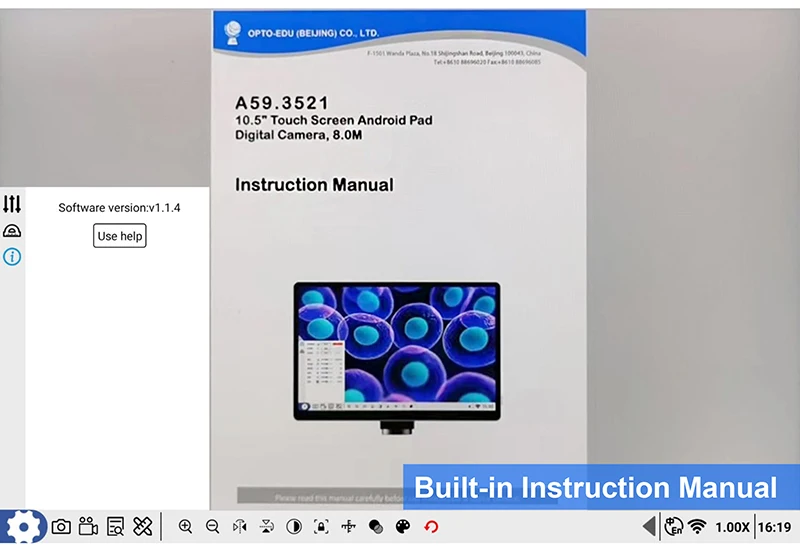

Manual
|
Built-in Instruction Manual For Quick View
|
|

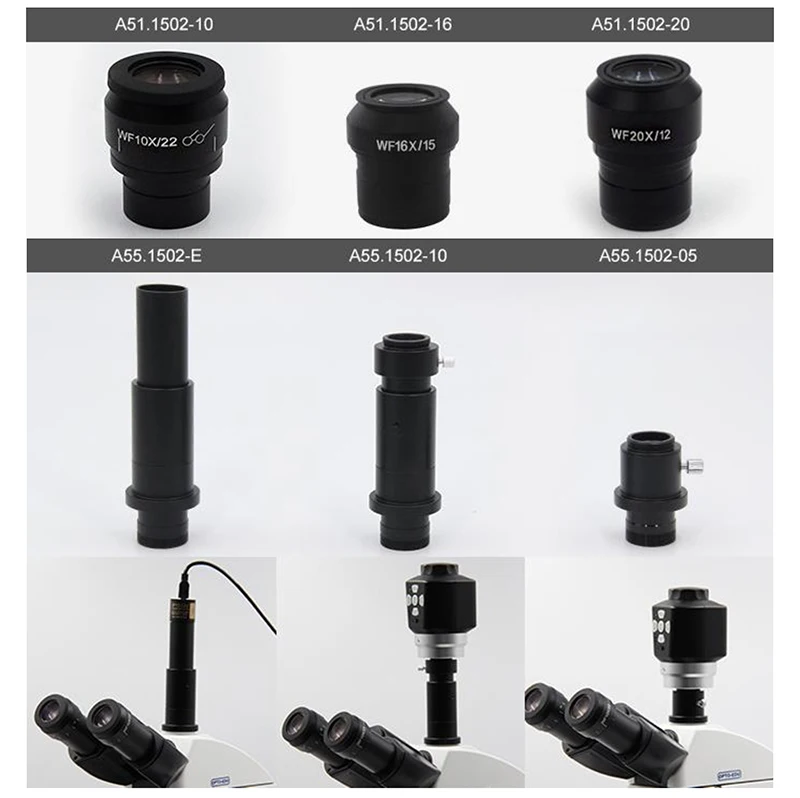

Laboratory Biological Microscope Optional Accessories
|
||
|
Eyepiece
|
WF16X/F.N.15mm
|
A51.1502-16
|
|
WF20X/F.N.12mm
|
A51.1502-20
|
|
|
Nosepiece
|
Backward Quintuple Nosepiece
|
A54.1502-5
|
|

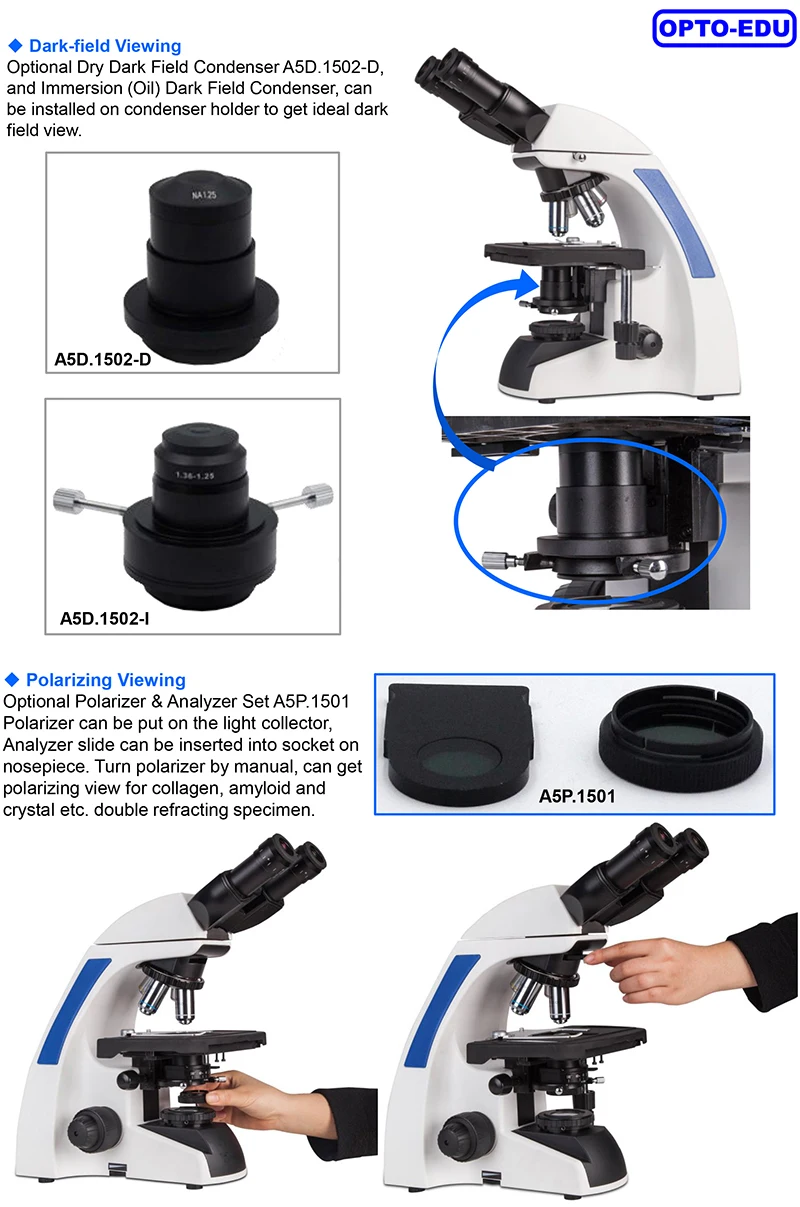

Dark Field
|
Dark Field Condenser, Dry, N.A.1.25
|
A5D.1502-D
|
|
Dark Field Condenser, Immersion, N.A.1.25~1.36
|
A5D.1502-I
|
|
|
Polarizing
|
Polarizer & Analyzer
|
A5P.1501
|
|
Phase Contrast
|
Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x
Infinity Plan Phase Contrast Objective 10x,20x,40x,100x Centering Telescope 10x Optional For B, T Only |
A5C.1501
|
|
Adapter
|
Eyepiece Tube Adapter
|
A55.1502-E
|
|
C-Mount 1.0x
|
A55.1502-10
|
